Automatic fertilizer injection system

FOB Reference Price:Get Latest Price
US $5,000-7,000 / Sets | 1 Set/Sets Automatic fertilizer injection system (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Agricultural Hydroponics, Automatic fertilizer injection system
Product Name:
Automatic fertilizer injection system
Usage:
Irrigation fertilizer
Cover Material:
Galvanized steel
Capacity:
600L
Power:
DC220V/380V
Size:
1400*700*1400mm
Solenoid valve:
5pcs / 8pcs / 20pcs or customized
Water inlet & outlet diameter:
DN32mm
Maximum amount of fertilizer absorption:
50L-480L/h
Supply Ability
Supply Ability:
1000 Set/Sets per Month Automatic fertilizer injection system
Packaging & Delivery
Packaging Details
Automatic fertilizer injection system packed by wooden box
Port
Shanghai Port
Lead Time :
15-20 days

Automatic fertilizer injection system





Product Introduction

       Automatic fertilizer injection system using advanced computer, industrial automation and internet of things technology, according to the law of fertilizer demand at different growth stages of crops, using all-water-soluble fertilizer as raw material, accurately controlling the proportion of nutrients, and accurately formulating the liquid formula fertilizer required for various crops, according to needs. Quantitative automated fertilization.

Brand NameNatureHydro
NameAutomatic fertilizer injection system
AutomationFull Automation
VoltageDC220V/380V
Size1400*700*1400mm
Rated power3Kw
Solenoid valve5pcs / 8pcs / 20pcs or customized
Pipe interface sizeDN32mm

Maximum amount of

fertilizer absorption

50L-480L/h
ComponentsFertilize pump/ flow sensor/ Frequency converter/ Solenoid valve etc.
Picture 2.png
Product Accessories

Automatic fertilizer injection system includes: Liquid tank, Control system, Solenoid valve system, Water pump, Fertilizer and Three- way fertilizer system.


Product Advantages

1. Can achieve the computer, mobile phone APP remote control ;

2. Quantitative irrigation and fertilization;

3. Real-time monitoring of water and fertilizer ratio;

4. Fully improve the nutrient utilization;

5. Temperature control wet control, simple operation;

6. Internet interface, fertilizer, soil EC / PH detection sensor intelligent detection;

7. Integrated controller, water pump, EC/PH detection system and multiple solenoid valve control. The external switch is safe and easy to operate;

8. Scientific fertilization method, fertilizer water can be recycled;

9. The use of a wide range of environments, orchards, greenhouses, horticulture and other planting sites can be used;

10. The structure of fertilizer applicator is stable and reliable, corrosion-resistant and rust-proof. There is no external leakage of electromechanical equipment. Long service life, parts can be assembled, good interoperability.



.png

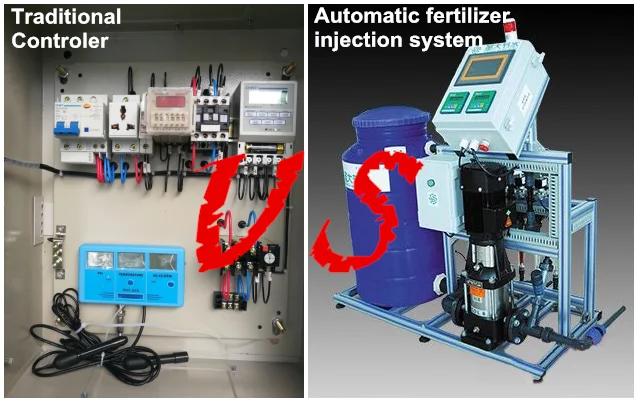

The Automatic fertilizer injection system is a smart upgrade version of  the traditional controler. There are two main difference between them:



1. Based on the traditional controller, the Automatic fertilizer injection system added an incorporates computer, an irrigation pump, a storage tank, a suction device, and a suction line etc.. It makes the system smarter and easier for hydroponic irrigation.



2. The traditional controler can only display the EC/PH value, but the Automatic fertilizer injection system can also control the EC/PH value!



FAQ



 1. What are your biggest advantages of this Automatic fertilizer injection system?
A: This Automatic fertilizer injection system is mainly used for intelligent fertilizer applicators for soilless cultivation, hydroponic vegetables, and hydroponic flowers. It can realize EC/PH value detection, automatic fertilizer application, precise ratio, and regular ration.


2. How much area can your Automatic fertilizer injection system?
  A: The irrigation area of the Automatic fertilizer injection system depends on the size of the irrigation area of the main water pipe and the water amount of the main water pipe. If there is only one main water source, and no need the automatic controling, then all the places where the water source in the pipeline all are irrigated area.


3. How many parts included of the Automatic fertilizer injection system?
A: Our Automatic fertilizer injection system mainly includes the following parts: main control system, power supply control system, solenoid valve access system, suction fertilizer pipe system, suction pump power, suction fertilizer pump power system (pipes, fertilizing tanks, etc. need to be purchased separately by customers)


4. Does Automatic fertilizer injection system have a filter?
A: Our Automatic fertilizer injection system comes with two small filter, the function is mainly to filter the impurities in the fertilizer pipe. It is generally recommended that customers install the corresponding water filter according to the water quality when the main pipe is installed, to ensure the smooth flow of the pipeline.



Product Effects

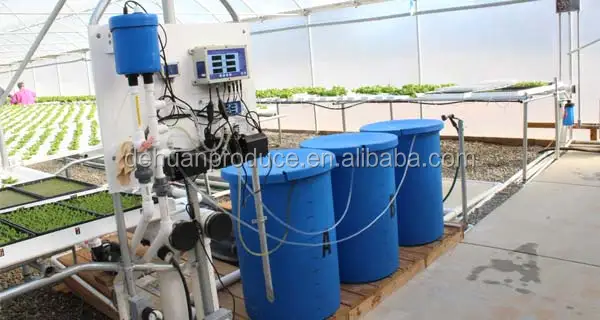

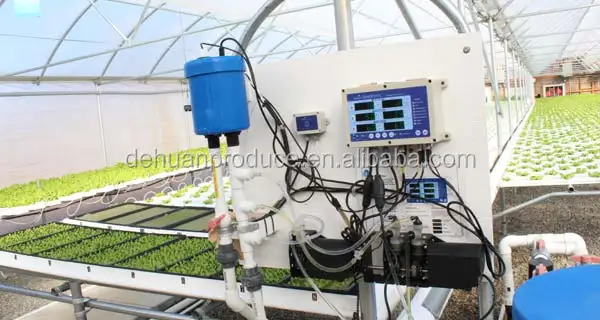

Automatic fertilizer injection system are widely used in hydroponic farms.










Packaging & Shipping

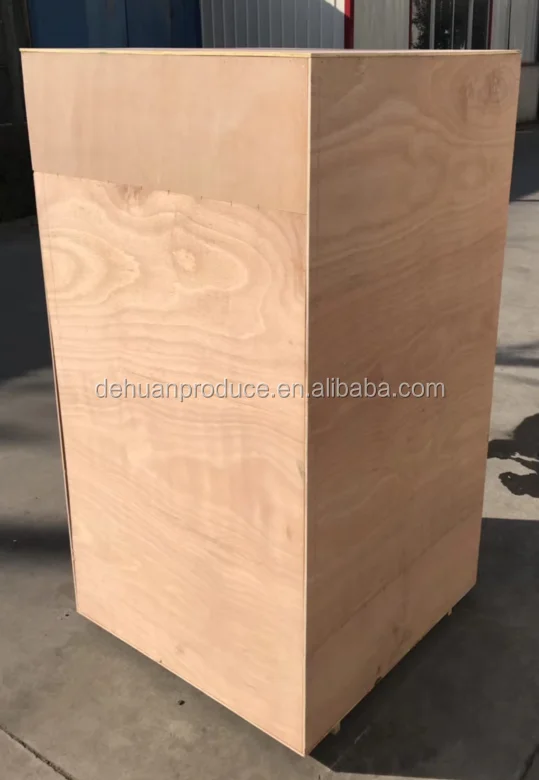

The Automatic fertilizer injection system is packed with the wooden box.


Company Information

 The Factory Show:



Aeroponic tower garden watering system



Our factory is specialized in providing and exporting agricultural greenhouses hydroponics system and accessories for plants, having the biggest advantage in providing Automatic fertilizer injection system. the Complete system will be able to provided. Our engineers , technicians and service staff will always at your service!For more information, please visit our website:http://www.dehuan.cn. A visit to our company or factory will be warmly welcomed!



Contact us

For more details of Automatic fertilizer injection system, please feel free to contact us.
